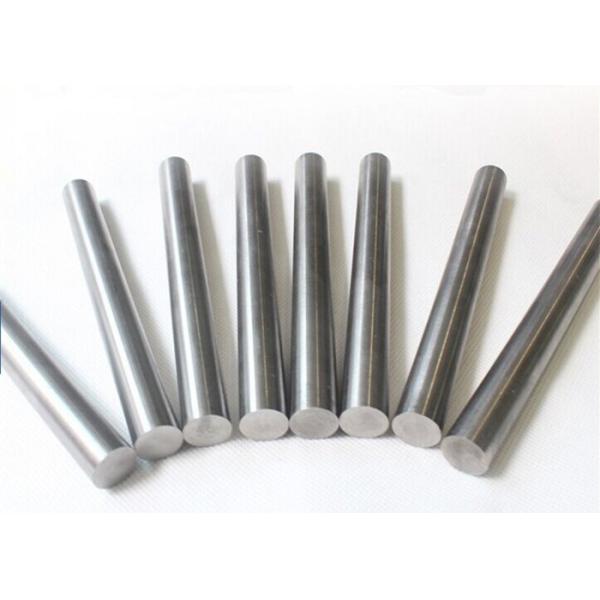

High Hardness Tungsten Carbide Rod Blanks Anti - Vibration Grinding Surface
Application of Our Tungsten Carbide rods:
Tungsten carbide rods are used for cutting metal, wood and other materials. The advantages of our carbide cutting rods are smooth, good wear-resistance, good hardness, fast cutting speed and have a long-lifetime. Unlimited tracks of grades and sizes of carbide plates are available in our company.
Product Detail:
1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 150*150*10mm. 195*195*20mm, according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG6/YG8/YG8C/YG11/YG11C/YL10.2/YG10X/YG12X etc
6. Length of Tungsten Carbide Plate: 10.0 mm to 400 mm; Width: 10.0 mm to 400 mm
7. Thickness: 1.0 mm to 100.0 mm
Recommanded grades for your reference
| Grade | ISO Range | Cobalt% | Density g/cm3 | Hardness HRA |
| YG8 | K30 | 8 | 14.8 | 89.5 |
| YG6 | K30 | 6 | 14.95 | 90.5 |
| YG6X | K10 | 6 | 14.95 | 91.5 |
| YL10.2 | K30 | 10 | 14.5 | 91.8 |
| YG15 | K40 | 15 | 14 | 87.5 |
Some size list:
| L | W | T |
| 200 | 200 | 10-45 |
| 150 | 150 | 10-45 |
| 150 | 130 | 10-45 |
Advantge of Our tungsten carbide bar
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Our Packing and shipment:
| Packing | Outside Carton or plywood case with inner plastic box. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques |
Our standard size models:
| Grinding | Blank |
| D | L | D | L |
| (mm) | Tol.(mm) | Tol.(+1mm) | (mm) | Tol.(mm) | Tol.(+3mm) |
| 2 | h6 | 330 | 2.2 | +0.2 | 330 |
| 3 | h6 | 330 | 2.7 | +0.2 | 330 |
| 3.175 | h6 | 330 | 3.2 | +0.2 | 330 |
| 4 | h6 | 330 | 3.7 | +0.2 | 330 |
| 5 | h6 | 330 | 4.2 | +0.2 | 330 |
| 6.35 | h6 | 330 | 4.7 | +0.2 | 330 |
| 7 | h6 | 330 | 5.2 | +0.2 | 330 |
| 8 | h6 | 330 | 5.7 | +0.2 | 330 |
| 9 | h6 | 330 | 6.2 | +0.2 | 330 |
| 10 | h6 | 330 | 6.7 | +0.2 | 330 |
| 11 | h6 | 330 | 7.2 | +0.2 | 330 |
| 12.7 | h6 | 330 | 8.2 | +0.3 | 330 |
| 13 | h6 | 330 | 8.7 | +0.3 | 330 |
| 14 | h6 | 330 | 9.2 | +0.3 | 330 |
| 15 | h6 | 330 | 9.7 | +0.3 | 330 |
| 16 | h6 | 330 | 10.2 | +0.3 | 330 |
| 17 | h6 | 330 | 10.7 | +0.3 | 330 |
| 18 | h6 | 330 | 11.2 | +0.3 | 330 |
| 19 | h6 | 330 | 11.7 | +0.3 | 330 |
| 20 | h6 | 330 | 12.2 | +0.3 | 330 |
| 22 | h6 | 330 | 14.2 | +0.3 | 330 |
We can customize dimension for you.For more size information, please kindly email or call us
Production Process:
Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Our standard size models:
| Grinding | Blank |
| D | L | D | L |
| (mm) | Tol.(mm) | Tol.(+1mm) | (mm) | Tol.(mm) | Tol.(+3mm) |
| 2 | h6 | 330 | 2.2 | +0.2 | 330 |
| 3 | h6 | 330 | 2.7 | +0.2 | 330 |
| 3.175 | h6 | 330 | 3.2 | +0.2 | 330 |
| 4 | h6 | 330 | 3.7 | +0.2 | 330 |
| 5 | h6 | 330 | 4.2 | +0.2 | 330 |
| 6.35 | h6 | 330 | 4.7 | +0.2 | 330 |
| 7 | h6 | 330 | 5.2 | +0.2 | 330 |
| 8 | h6 | 330 | 5.7 | +0.2 | 330 |
| 9 | h6 | 330 | 6.2 | +0.2 | 330 |
| 10 | h6 | 330 | 6.7 | +0.2 | 330 |
| 11 | h6 | 330 | 7.2 | +0.2 | 330 |
| 12.7 | h6 | 330 | 8.2 | +0.3 | 330 |
| 13 | h6 | 330 | 8.7 | +0.3 | 330 |
| 14 | h6 | 330 | 9.2 | +0.3 | 330 |
| 15 | h6 | 330 | 9.7 | +0.3 | 330 |
| 16 | h6 | 330 | 10.2 | +0.3 | 330 |
| 17 | h6 | 330 | 10.7 | +0.3 | 330 |
| 18 | h6 | 330 | 11.2 | +0.3 | 330 |
| 19 | h6 | 330 | 11.7 | +0.3 | 330 |
| 20 | h6 | 330 | 12.2 | +0.3 | 330 |
| 22 | h6 | 330 | 14.2 | +0.3 | 330 |
We can customize dimension for you.For more size information, please kindly email or call us
Production Process:
Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Our advantage
1 We are a Real Factory in Zhuzhou City.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Non-poisonous ,Good mechanical properties
3.100% QC inspection Before Shipment.
4. We guarantee that all of our products are used with 100% Virgin Raw Material.
5. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.
Our advantage
1 We are a Real Factory in Zhuzhou City.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Non-poisonous ,Good mechanical properties
3.100% QC inspection Before Shipment.
4. We guarantee that all of our products are used with 100% Virgin Raw Material.
5. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.
